Fundamentals of AI System Architecture
The complete "Chapter 1: Fundamentals of AI System Architecture" from the book, Architecting AI Software Systems by Richard D Avila and Imran Ahmad
The recent surge of public interest in Artificial Intelligence (AI), particularly with the rise of generative AI, has ignited a wave of excitement and demand for comprehensive AI solutions. This heightened interest extends beyond tech enthusiasts and researchers to businesses, governments, and individuals seeking to harness AI’s power to solve real-world problems and enhance their capabilities. In this landscape, the architecture of AI systems, which defines their structure, components, and interactions, plays a pivotal role in shaping the development and deployment of effective AI solutions.
AI has emerged as a transformative force, revolutionizing industries and reshaping the way we interact with technology and the world around us. At its core, AI refers to computational models that mimic human cognitive functions, including learning from data, recognizing patterns, making decisions, and even interacting with their environment. This revolutionary technology spans a wide spectrum, from simple rule-based systems to sophisticated deep learning models, each with unique applications and capabilities.
A major aspect of any AI system is that the results of the inference being done need to be relevant and trusted. To ensure trust is gained and maintained, the use of strong architecture is paramount. One not only architects the technology but also how the technology is going to be used, managed, and evaluated by the span of stakeholders. The stakeholders need to be able to pinpoint issues, rapidly correct model parameters, and deploy changes in a deliberate and rapid manner. In more common parlance, the architecting and supporting processes can be described as “guard rails.” How one employs guard rails is very specific to the domain and use case that is to use the AI technology. There are classes of guard rails that can be discussed – for example, the use of canaries to judge model correctness from a known gold standard, time and data flow metrics to judge model performance, and the use of filters and robust data quality checks so that only consistent and correct data enters the system. Another class of guardrails is human system interfaces, such as alerting frameworks to classify errors and monitors, the use of troubleshooting tools, and preset protocols for handling unexpected errors. Written procedures or guidance from modeling allow for the maintenance of a system without the need to call upon the model developer to do troubleshooting.
Trust is a paramount consideration for system success, so one needs to architect a system with that in mind. In many ways, the presentation and lessons learned described in this book look to ensure trust in an AI system.
This chapter highlights, in a broad sense, the key aspects of AI architecture considerations that drive a successful AI implementation. The topics are as follows:
Introduction and key AI concepts
Components of an AI system
AI technologies and microservices
AI systems and technical considerations
Deployment considerations
Introduction to AI systems: architecting the future of intelligence
AI systems are the embodiment of AI, acting as the engines that power intelligent applications and services. These systems are intricate constructs, meticulously designed to perform a diverse range of tasks, from image recognition and natural language processing to autonomous decision-making and complex problem-solving.
The architecture of an AI system functions as a detailed technical blueprint, specifying its structural organization and the precise interactions between its various components. These components include the following:
Hardware infrastructure: CPUs for general processing, GPUs for parallel computation, TPUs for tensor operations, and specialized AI accelerators
Software frameworks: TensorFlow, PyTorch, JAX, and other libraries that enable model development
Algorithmic implementations: Machine learning algorithms, neural network architectures, and inference engines
Data pipelines: ETL processes, feature stores, and data management systems
All these elements work in a coordinated operation to enable the system to fulfill its designed objectives efficiently and reliably.
A well-architected AI system achieves several critical technical requirements:
Optimal performance: Maximizes computational efficiency to deliver responsive and accurate results with minimal latency. This involves an optimized model design, efficient resource allocation, and hardware-aware implementations that fully utilize available computing capabilities.
Scalability: Handles growing workloads and expanding datasets through both horizontal scaling (adding more machines) and vertical scaling (adding more powerful machines) without performance degradation. Modern AI architectures must accommodate increasing data volumes, user bases, and computational demands.
Efficiency: Reduces computational resource consumption, energy usage, and operational costs through techniques such as model quantization, knowledge distillation, and optimized inference paths. Efficient AI systems minimize their resource footprint while maintaining functional effectiveness.
Reliability: Ensures consistent operation with high-availability metrics, even when facing unexpected data patterns, input variations, or system failures. This requires robust error handling, graceful degradation capabilities, and comprehensive monitoring systems. Given that AI technologies can be both deterministic and non-deterministic, consideration must be given to allow for human intervention. This intervention needs to span the gamut from simple monitoring to a full suite of testing infrastructure.
Security: Implements comprehensive data protection measures and defends against adversarial attacks, data poisoning, and model vulnerabilities. AI systems must maintain data confidentiality and integrity, and be resilient against both traditional cybersecurity threats and AI-specific attacks.
Explainability: Provides transparent visibility into algorithmic decision processes, supporting regulatory compliance, user trust, and system debugging. Modern AI architectures must balance performance with interpretability to meet growing demands for AI transparency.
The field of AI is constantly evolving, with new architectures and technologies emerging at a rapid pace. As we delve deeper into this fascinating domain, we will explore the various types of AI systems, their underlying principles, and the diverse applications that are shaping the future of technology and society.
What is an AI system?
An AI system is a computational model or a collection of models designed to perform tasks that typically require human intelligence. These systems are powered by algorithms and data, enabling them to learn from experience, adapt to new information, and make decisions or predictions.

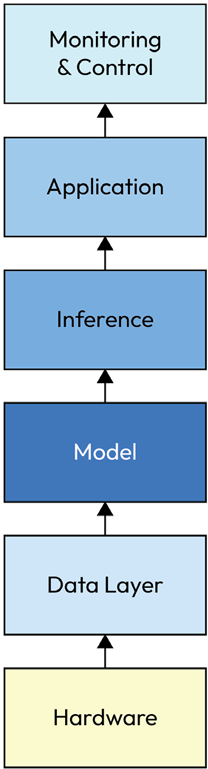

From an implementation perspective, AI systems typically consist of several key layers:
Hardware: Encompasses compute resources such as CPU, GPU, TPUs, full-spectrum storage, and networking
Data layer: Handles data ingestion, storage, preprocessing, and feature engineering
Model layer: Contains the trained machine learning or deep learning models
Inference layer: Manages the execution of models against new data inputs
Application layer: Integrates AI capabilities into user-facing applications
Monitoring layer: Tracks system performance, data drift, and model health

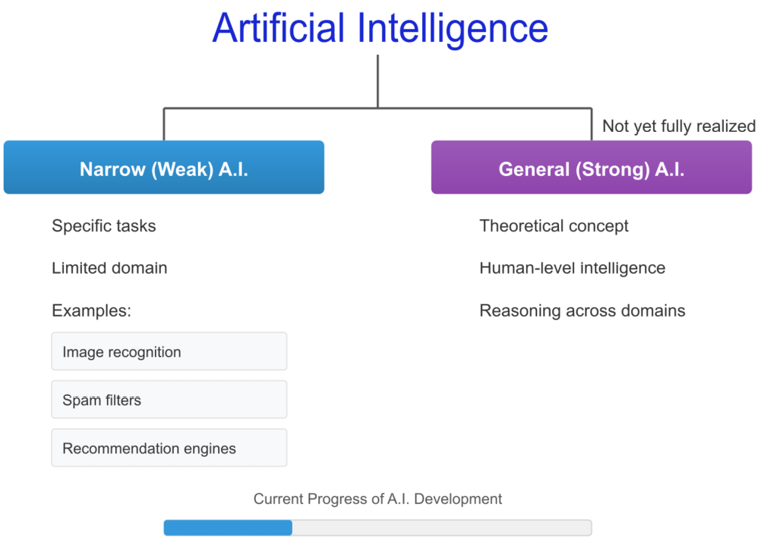

AI systems can be classified into two broad categories:
Narrow AI (weak AI): These systems are designed to excel at specific tasks within a limited domain. Examples include image recognition software, spam filters, and recommendation engines. While they may be highly proficient at their designated tasks, they lack the ability to generalize their knowledge in other areas.
General AI (strong AI): This is a theoretical concept of an AI system that possesses human-level intelligence and can perform any intellectual task that a human can. It would have the ability to reason, plan, solve problems, learn from experience, and understand complex ideas across diverse domains. While general AI remains a distant goal, significant progress has been made in developing systems with increasingly sophisticated capabilities.
The pervasive impact of AI infrastructure: powering intelligent solutions across industries
Well-architected AI infrastructure, encompassing the hardware, software, and networks that support AI applications, is the driving force behind the transformative impact of AI across industries. This infrastructure enables the deployment and scaling of AI models, algorithms, and frameworks, unlocking their full potential to address complex challenges and deliver innovative solutions.
Healthcare:
Accelerated medical image analysis: High-performance computing clusters and specialized hardware accelerators enable rapid processing of medical images, facilitating faster and more accurate diagnosis.
Data-driven insights: Scalable storage and processing infrastructure empowers AI-driven analytics on vast patient datasets, leading to personalized treatment plans and improved patient outcomes.
Real-time monitoring: Cloud-based AI infrastructure enables continuous monitoring of patient vitals and other health data, facilitating timely interventions and proactive care.
Finance:
Robust fraud detection: Distributed computing and real-time analytics platforms empower AI models to detect fraudulent transactions with greater accuracy and speed, protecting financial institutions and consumers.
Optimized trading strategies: High-frequency trading algorithms leverage low-latency networks and powerful computational resources to execute trades with precision and efficiency, maximizing returns.
Personalized financial services: Cloud-based AI infrastructure enables the deployment of robo-advisors and other AI-powered tools that provide tailored financial advice and services to individuals.
Autonomous vehicles:
Real-time sensor fusion: High-throughput data pipelines and edge computing infrastructure enable the rapid processing of sensor data from cameras, lidar, radar, and other sources, ensuring timely decision-making for autonomous vehicles.
Enhanced object recognition: Deep learning models trained on massive datasets and deployed on specialized hardware accelerators enable accurate and reliable identification of objects in the environment.
Optimized navigation: Cloud-based mapping and navigation services, combined with onboard AI processing, provide autonomous vehicles with real-time information and guidance for safe and efficient navigation.
The continued development and optimization of AI infrastructure will play a crucial role in realizing the full potential of AI across industries. By providing the foundation for performant and scalable AI solutions, this infrastructure is poised to transform the way we live and work.
Key components of AI system architectures
AI systems, in their essence, are complex structures designed to emulate human cognitive abilities such as learning, reasoning, and problem-solving. To achieve these capabilities, AI systems rely on a well-defined architecture comprising several interconnected components, each playing a crucial role in the overall functioning of the system. Understanding these key components is fundamental to comprehending the inner workings and potential of AI.
Data components: Data serves as the lifeblood of any AI system, acting as the raw material upon which the system learns and improves. Data can exist in multiple forms:
Structured data: Organized in predefined formats such as databases and spreadsheets
Semi-structured data: Partially organized information such as JSON or XML files
Unstructured data: Raw information, including text documents, images, audio recordings, and video files
The quality, quantity, and relevance of the data significantly impact the AI system’s performance and ability to generalize to new situations.
Algorithmic frameworks: Algorithms are engines driving AI systems, providing instructions and logic for processing data and generating intelligent outputs. Machine learning algorithms, a subset of AI algorithms, empower systems to learn patterns and relationships from data, enabling them to make predictions, classifications, or decisions. Common algorithmic approaches in production AI systems include the following:
Traditional machine learning: Linear regression, random forests, gradient boosting, and support vector machines
Deep learning: Convolutional neural networks (CNNs), Recurrent Neural Networks (RNNs), transformers, and graph neural networks
Reinforcement learning: Q-learning, policy gradient methods, and actor-critic architectures
The selection of appropriate algorithms depends on the specific problem domain, available data characteristics, and performance requirements.
Model architectures: Models represent the culmination of the learning process in AI systems. They are mathematical representations of the knowledge extracted from data, encapsulating the patterns, relationships, and insights discovered by the algorithms. These models can be simple or complex, depending on the nature of the task and the algorithm used. Model architectures range between the following:
Simple linear models: Easily interpretable but limited in capability
Ensemble models: Combining multiple simpler models for improved performance
Deep neural networks: Complex architectures with millions or billions of parameters
Once trained, models are used to make predictions or decisions on new, unseen data.
Infrastructure: The infrastructure component encompasses the hardware and software resources that provide the computational power and environment necessary for AI systems to operate. Key infrastructure elements include the following:
Computational resources: High-performance servers, specialized AI accelerators (GPUs, TPUs, FPGAs), and distributed computing clusters
Storage systems: High-throughput, scalable storage for training data and model artifacts
Networking components: Low-latency interconnects for distributed training and inference
Development frameworks: Software libraries such as TensorFlow, PyTorch, and Hugging Face that streamline AI development and deployment.
Understanding these key components and their interactions provides a solid foundation for comprehending the complex landscape of AI system architectures. By carefully designing and optimizing each component, researchers and engineers can build AI systems that are capable of tackling a wide range of tasks and applications, from image recognition and natural language processing to autonomous driving and drug discovery. The integration of AI capabilities into existing software stacks requires thoughtful architectural considerations to successfully incorporate intelligence while addressing the unique requirements that AI components introduce. These specific requirements and architectural approaches form the central focus of this book. Due to the complexity of AI systems, the nature of the deployment approach is paramount. The next section will discuss the use of microservice architectures that provide a balance between performance and modularity.
Microservice architectures: a modular approach to building complex AI systems
As AI systems grow in complexity, traditional monolithic architectures can become unwieldy, hindering development speed and flexibility. Microservice architectures offer a compelling alternative by breaking down these complex systems into smaller, independent services. Each microservice focuses on a specific function and communicates with others through well-defined APIs.
Advantages of microservices for AI
Enhanced agility and flexibility: Teams can independently develop, deploy, and update each microservice, using the most suitable technologies and programming languages for each task. This accelerates development cycles and allows for easier experimentation and innovation.
Improved scalability: Microservices can be scaled horizontally to meet specific demand, ensuring optimal resource utilization. For example, a service handling image processing can be scaled independently of a service responsible for natural language understanding.
Increased resilience and fault isolation: If a microservice fails, the impact is localized, minimizing disruption to the entire system. This enhances overall reliability and simplifies troubleshooting.
Technological diversity: Microservice architectures empower teams to leverage the best tools for each task, promoting innovation and allowing for gradual technology upgrades.
Challenges of microservice architectures
Increased complexity: Managing a multitude of services and their interactions requires robust orchestration and monitoring tools. Service discovery, load balancing, and failure handling become critical considerations.
Communication overhead: Excessive inter-service communication can introduce latency and impact overall performance. The careful design of APIs and communication patterns is essential to mitigate this issue.
Data consistency: Maintaining data consistency across distributed services can be challenging. Strategies such as eventual consistency or distributed transactions may be required to ensure data integrity.
Real-world example: conversational AI microservices implementation
To illustrate how a microservices approach can streamline a conversational AI solution, let us examine a practical example that demonstrates how these principles come to life. This section explores a conversational AI system – such as a chatbot or virtual assistant – built using a four-service microservices architecture with an API gateway.
The four core microservices

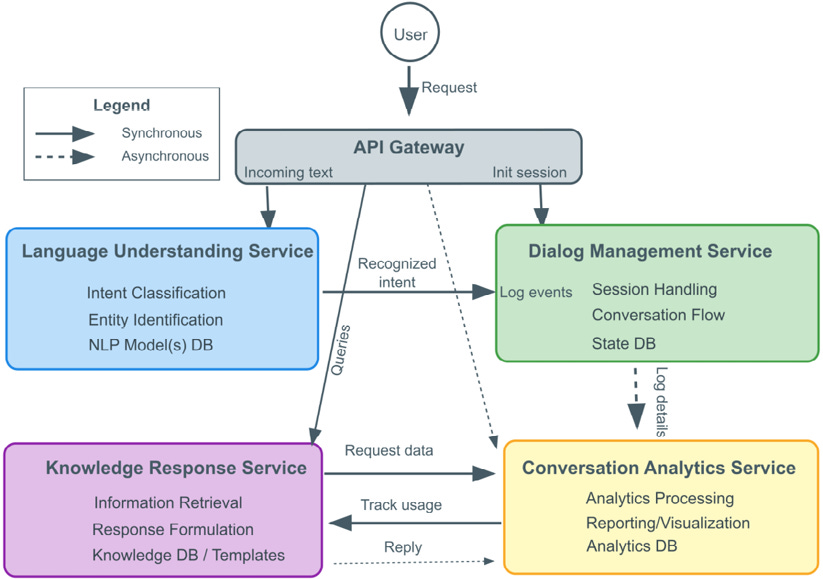

Figure 1.6 illustrates the high-level design of our conversational AI system:
The architecture consists of four core specialized services plus an API gateway:
Language understanding service:
Primary functions: Intent classification, entity identification/extraction, and hosting of NLP models.
Data and models: References one or more NLP model databases (for example, transformer-based classifiers).
Key interactions: Receives the user’s text (through the API gateway), determines the user’s intent (e.g., “Check account balance”), and extracts relevant entities (e.g., “date,” “location,” “product name”).
Dialog management service:
Primary functions: Oversees conversation flow, handles session state, and orchestrates the next step in the dialog.
Data and state: Maintains conversation context in a dedicated state database.
Key interactions: Logs conversation events (asynchronously) and updates or retrieves session details to guide the flow (e.g., “Greeting,” “Confirmation,” “Next step”).
Knowledge response service
Primary functions: Retrieves relevant information and formulates responses. This might involve querying a knowledge base (e.g., FAQs, product info) or assembling template-based replies.
Data and templates: Stores domain-specific data in a knowledge DB and uses templates or generative mechanisms for response creation.
Key interactions: Receives queries from the dialog management service, finds or composes the best response, and returns it for final delivery to the user.
Conversation analytics service:
Primary functions: Processes logs and usage metrics for reporting, visualization, and deeper analytics (e.g., intent distribution, user satisfaction trends).
Data and reporting: Maintains analytics data in a separate database for dashboards or offline processing.
Key interactions: Collects asynchronous event logs from the dialog management service and other components to measure performance, track user behavior, and provide insights that could improve the system over time.
Role of the API gateway
Although not counted as one of the four microservices, the API gateway is a vital component at the front of the architecture. It does the following:
Receives requests from the user (via text or other channels)
Initializes the session and routes incoming data to the language understanding service
Forwards recognized intents and updates to the dialog management service
Passes replies from downstream services back to the user
By centralizing traffic management, the API gateway enforces consistent security, throttling, and monitoring policies while keeping each microservice isolated and independently scalable.

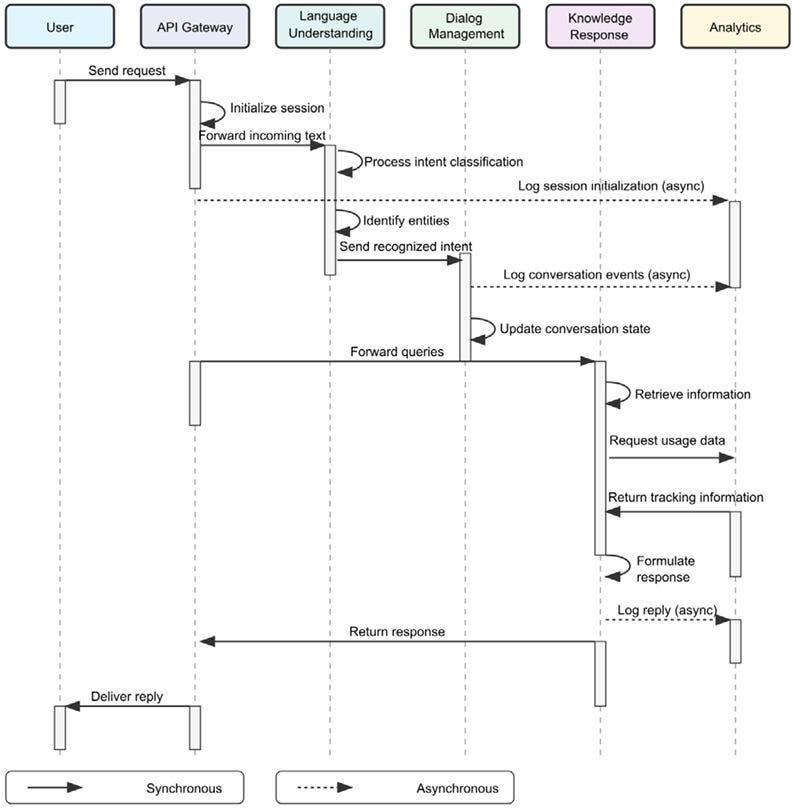

Conversation flow sequence
To illustrate how these microservices interact during a typical user journey, Figure 1.7 shows the sequence of calls between them in a single conversation cycle:
The sequence progresses as follows:
User → API gateway: The user sends a request (e.g., a chat message). The API gateway initializes the session (if needed) and forwards the message to the language understanding service.
Language understanding service:
Performs intent classification and entity identification.
Returns a recognized intent (e.g., “CheckWeather”) and any extracted entities (e.g., date, location) to the API gateway.
Dialog management service:
Receives recognized intent from the API gateway.
Logs conversation events (asynchronously) into the conversation analytics service.
Updates or retrieves the session state (e.g., user’s location or recent conversation context).
Knowledge response service:
Once the dialog management service determines additional data is needed (e.g., weather info, product detail), it sends a query to the knowledge response service.
This service fetches the necessary information or constructs a response template (e.g., “The weather for your location is sunny with 75°F...”).
Conversation analytics service (asynchronous logging):
Continuously receives usage data and conversation logs from the dialog management service (and possibly from the knowledge response service).
Processes and stores these logs for future reporting (e.g., monthly usage dashboards, model performance metrics).
Reply to the user:
The knowledge response service’s formulated answer is routed back through the dialog management service (if necessary, for final session updates) and then returned via the API gateway.
The user receives the reply and the interaction concludes.
Key aspects of microservice communication
Synchronous versus asynchronous calls:
Requests that must return immediately (e.g., generating a response for the user) use synchronous calls.
Logging or analytics operations are typically performed asynchronously to avoid slowing down the core conversation loop.
Stateful versus stateless components:
Dialog management requires tracking session state, while other services (e.g., language understanding) often benefit from stateless designs for simpler scaling.
The dialog management service may require robust state management solutions, such as distributed caches or databases.
Service autonomy:
Each microservice can be updated or replaced independently without affecting the rest of the system.
The language understanding service’s NLP models may need frequent retraining. Because it is a separate service, such updates can be deployed without disrupting the other services.
Data isolation:
Services manage their own domain data. Dialog management stores conversation state, knowledge response holds domain facts, and analytics maintains interaction logs.
Sensitive user data should be restricted to the dialog management service’s state store when necessary, minimizing the exposure across the entire system.
Implementation considerations for conversational AI microservices
Scaling independently:
The language understanding service can be scaled up or down based on incoming message load (e.g., horizontal autoscaling for peak chat traffic).
The dialog management service maintains conversation state and may require different scaling strategies.
The knowledge response service often scales according to the complexity of information retrieval.
The conversation analytics service can be scaled separately, especially if analytics workloads (such as report generation) spike at different times than user requests.
Latency management:
Conversational AI systems aim for near real-time interactions. Minimizing network hops and communication overhead between services is crucial. Using lightweight communication protocols helps ensure the system performs well at scale.
Fault isolation:
If one service fails (for instance, the knowledge response service goes offline), the rest of the system can still handle other tasks or offer fallback behaviors (e.g., an apology response or a redirect to a human agent).
Monitoring and observability:
Robust logging and observability practices are crucial to ensure the system remains resilient to service failures or slowdowns. The conversation analytics service plays a key role in tracking system health and performance.
Why microservices for conversational AI?
Breaking down a conversational AI system into these four specialized services confers significant benefits in maintainability, scalability, and team agility. Each service can evolve independently, allowing rapid iteration on NLP models, conversation flows, and knowledge retrieval strategies without risking a “big bang” failure across the entire application.
At the same time, careful attention to inter-service communication is crucial. As the sequence diagram shows, multiple hops occur for every user request. Using lightweight communication protocols and distinguishing between synchronous and asynchronous operations helps maintain system responsiveness.
The example of conversational AI powerfully illustrates how the microservices approach enables balancing flexibility, fault tolerance, and iterative innovation. The lessons learned here – such as independently scaling critical services, isolating data for security, and ensuring graceful failure modes – apply broadly to a wide array of AI-driven solutions.
This real-world implementation pattern demonstrates that while microservices add complexity, the benefits they bring to AI systems – particularly those requiring frequent updates, variable scaling, and component-level innovation – often outweigh the challenges when properly architected and implemented.
Considerations for an AI system
Creating a well-designed AI system architecture necessitates careful consideration of several key factors. These factors ensure that the system not only functions effectively but also adapts to future demands and challenges.
Scalability: handling growing data and model complexity
AI systems often encounter growing volumes of data and increasingly complex models. Scalability is the ability of a system to handle this growth without compromising performance. Effective strategies include the following:
Horizontal scaling: This involves adding more compute resources to distribute the workload. For instance, in a cloud environment, you might deploy additional virtual machines or containers to handle increased traffic. Kubernetes can orchestrate these containers, ensuring that the workload is evenly distributed.
Vertical scaling: Enhancing existing resources with more powerful hardware. For example, upgrading a server’s CPU or GPUs, adding more RAM, or using SSDs instead of HDDs to improve I/O performance.
Distributed computing: Utilizing frameworks such as Apache Spark or Hadoop to process data across multiple nodes. This approach breaks down large datasets into smaller chunks that can be processed in parallel, significantly reducing processing time. For instance, Spark’s Resilient Distributed Datasets (RDDs) allow for in-memory processing, which is much faster than traditional disk-based processing.
Performance: optimization techniques
In many AI applications, real-time or near-real-time processing is crucial. Techniques to optimize performance include the following:
Hardware acceleration: Leveraging GPUs or TPUs for computationally intensive tasks – for example, TensorFlow and PyTorch can utilize CUDA cores in NVIDIA GPUs to accelerate deep learning model training.
Parallel processing: Dividing tasks into smaller sub-tasks that can be executed concurrently. In Python, libraries such as multiprocessing or concurrent.futures can be used to parallelize tasks – for instance, training multiple models simultaneously or processing different data batches in parallel.
Algorithm optimization: Choosing or designing algorithms with lower computational complexity. For example, using approximate nearest neighbor algorithms for large-scale similarity search instead of exact methods, which are computationally expensive.
Reliability: fault tolerance, error handling, and redundancy
Reliability is paramount, especially in critical applications. To ensure system uptime and data integrity, strategies such as fault tolerance, error handling, and redundancy are employed:
Fault tolerance: The system can continue operating even if some components fail. For example, in a microservices architecture, if one service fails, others can continue to function. Tools such as Netflix’s Hystrix can be used to implement circuit breakers to manage failures.
Error handling: Mechanisms are in place to detect and correct errors gracefully – for instance, using
try-catchblocks in code to handle exceptions and logging errors for further analysis.Redundancy: Critical components are duplicated to prevent single points of failure – for example, using RAID configurations for disk storage or deploying services in multiple availability zones in cloud environments to ensure high availability.
Security: data privacy and model robustness
AI systems often handle sensitive data, making security a top priority. Key considerations include the following:
Data encryption: Protecting data at rest and in transit – for instance, using AES encryption for data stored in databases and TLS for data transmitted over networks. The use of encryption approaches needs to be considered and tested thoroughly to scope the impact on model and system performance.
Access control: Implementing strict authorization and authentication mechanisms – for example, using OAuth 2.0 for secure API access and role-based access control (RBAC) to manage permissions.
Model robustness: Guarding against adversarial attacks that could manipulate the system. Techniques such as adversarial training, where the model is trained on both normal and adversarial examples, can help improve robustness. Additionally, you can deploy anomaly detection systems to monitor for unusual patterns in data input.
Data modeling: catalogs and ontologies
In the realm of AI, data is not just a valuable asset but the very foundation upon which intelligent systems are built. As AI models rely heavily on vast amounts of data to learn and make informed decisions, effective management and organization of this data becomes paramount. This is where data catalogs and ontologies step in as indispensable tools for navigating the complexities of data landscapes within AI architectures.
Catalogs serve as centralized repositories of metadata, providing comprehensive information about the data assets within an AI system. They act as a comprehensive index, offering insights into the data’s location, schema, lineage, quality, and other relevant attributes. By consolidating this information in a structured and accessible manner, data catalogs empower data scientists, engineers, and analysts to gain a deeper understanding of their data resources, streamline their workflows, and ensure data governance.
Ontologies give a semantic representation of the data elements within the domain. They can aid the data engineer in understanding how and why data elements are associated and improve processing pipelines. Ontologies also give data scientists context for model development and updating.
The technical and functional attributes of AI systems have been discussed. The next section discusses the different ways to implement systems in a modern cloud context. The use of cloud technology ensures that one can readily scale an AI system based on actual demand and provides for flexibility in resource allocations.
Modern AI deployment paradigms
As AI systems continue to evolve, new deployment paradigms have emerged to address specific requirements and use cases. This section explores two significant approaches: cloud-native AI architectures and edge AI deployments.
Cloud-native AI architectures
The increasing complexity and scale of AI applications have led to the adoption of cloud-native architectures. These architectures leverage the scalability, flexibility, and cost-efficiency of cloud computing platforms to enable efficient development, deployment, and management of AI systems. In a cloud-native architecture, AI components are designed to run seamlessly in cloud environments, taking advantage of specialized services for storage, compute, and networking.
Key characteristics of cloud-native AI architectures include the following:
Containerization: AI applications are packaged into lightweight, portable containers using technologies such as Docker, ensuring consistency across development, testing, and production environments.
Orchestration: Container orchestration platforms such as Kubernetes manage the deployment, scaling, and operation of application containers across clusters of hosts.
Microservices: As discussed earlier, breaking down AI systems into smaller, independent services enables more efficient resource utilization and easier scaling.
Serverless computing: Platforms such as AWS Lambda, Azure Functions, and Google Cloud Functions allow developers to focus on writing code without worrying about the underlying infrastructure, particularly useful for event-driven AI workloads.
Managed services: Cloud providers offer specialized AI services such as fully managed machine learning platforms (e.g., Amazon SageMaker, Microsoft Azure ML, Google Vertex AI) that streamline the development and deployment process.
Cloud-native versus lift-and-shift: Cloud-native AI components are specifically designed to leverage the benefits of cloud environments, such as auto-scaling, serverless computing, and managed services. This approach offers greater flexibility, scalability, and cost-efficiency compared to simply “lifting and shifting” existing on-premises AI systems to the cloud without architectural modifications.
Data lakes and data warehouses in AI architectures: foundations for data-driven intelligence
In the realm of AI, data is the cornerstone of innovation and progress. AI models thrive on massive volumes of data, leveraging it to learn patterns, make predictions, and generate valuable insights. However, effectively managing and harnessing the vast amounts of data involved in AI projects necessitates specialized storage and management solutions. Two prominent concepts that have emerged in this context are data lakes and data warehouses.
Data lakes: a vast reservoir of raw data
Data lakes serve as expansive repositories where raw data is stored in its native format. They are designed to accommodate structured, semi-structured, and unstructured data from diverse sources. The flexibility of data lakes makes them ideal for storing large volumes of data that may not have a predefined purpose or structure.
Key characteristics:
Schema-on-read: Data lakes do not enforce a strict schema during ingestion, allowing for flexibility in data types and structures. The schema is defined during analysis or processing, empowering users to adapt to evolving data requirements.
Cost-effective scalability: Data lakes can easily scale to accommodate growing data volumes, making them a cost-effective solution for storing massive datasets.
Support for diverse data: Data lakes can handle a wide range of data, including sensor readings, social media feeds, log files, and more.
Ideal for exploratory analysis: Data lakes provide a fertile ground for data scientists and analysts to explore data, identify patterns, and generate hypotheses.
Example use cases:
An e-commerce company might store clickstream data, customer reviews, and social media interactions in a data lake for subsequent analysis and personalization efforts.
A healthcare organization could use a data lake to store medical images, electronic health records, and genomic data for research and development of AI-driven diagnostic tools.
Data warehouses: structured repositories for analytics
Data warehouses are structured repositories that house processed and curated data, transformed into a consistent format for analysis and reporting purposes. One can build and develop ontologies to organize and provide semantic structure to the data that comes into the system. Ontologies also provide a mechanism to better manage and control model performance by making relationships between data elements explicit.
They excel at facilitating efficient querying and analysis, making them indispensable for business intelligence and decision support applications.
Key characteristics:
Schema-on-write: Data warehouses enforce a predefined schema during data ingestion, ensuring data consistency and integrity.
Optimized for querying: Data warehouses employ optimized data structures and indexing techniques to accelerate data retrieval and analysis, enabling faster insights.
Support for structured data: Data warehouses are primarily designed for structured data, such as transactional data, customer information, and financial records.
Ideal for business intelligence: Data warehouses empower organizations to generate reports, dashboards, and visualizations for informed decision-making.
Example use cases:
A financial institution might use a data warehouse to store transaction data, customer information, and market trends for risk analysis and fraud detection.
A manufacturing company could leverage a data warehouse to analyze production data, supply chain metrics, and customer feedback to optimize operations and improve product quality.
The synergy of data lakes and data warehouses
In many AI architectures, data lakes and data warehouses complement each other. Raw data is first ingested into a data lake, where it undergoes cleansing, transformation, and enrichment. The refined data is then transferred to a data warehouse for further analysis and reporting. This synergistic approach enables organizations to leverage the flexibility of data lakes for data exploration and the structure of data warehouses for decision support, creating a robust foundation for data-driven AI applications.
AI on cloud computing: a game-changer for AI
The convergence of AI and cloud computing has opened up a new frontier of possibilities for organizations seeking to leverage the power of AI. Cloud computing provides a scalable, flexible, and cost-effective infrastructure for developing, deploying, and scaling AI applications. By harnessing the capabilities of the cloud, businesses can overcome the limitations of traditional on-premises AI solutions and accelerate innovation.
Benefits of cloud-based AI
Cloud-based AI offers several key advantages that make it an attractive option for organizations of all sizes:
Scalability: Cloud resources can be easily scaled up or down to meet the fluctuating demands of AI workloads. This elasticity allows organizations to handle large datasets, train complex models, and process vast amounts of data without having to invest in and maintain expensive hardware infrastructure.
Flexibility: Cloud platforms provide a wide range of AI services and tools, giving organizations the flexibility to choose the best options for their specific needs. This allows businesses to experiment with different AI approaches, quickly iterate on models, and adapt to changing requirements.
Cost-efficiency: Cloud-based AI can be more cost-effective than on-premises solutions. Organizations only pay for the resources they consume, eliminating the need for upfront capital investments in hardware and software. Additionally, cloud providers often offer pay-as-you-go pricing models, which can further reduce costs.
By leveraging the power of cloud-based AI, organizations can unlock new levels of innovation, efficiency, and competitiveness.
Major cloud AI platforms: accelerating innovation with comprehensive toolsets
Major cloud providers have emerged as key players in the AI landscape, offering comprehensive suites of AI services and tools that cater to a wide range of needs. These platforms provide a one-stop shop for businesses and developers looking to leverage the power of AI in their applications and workflows.
Key cloud AI platforms
Google Cloud AI platform (Vertex AI): This unified platform streamlines the entire Machine Learning (ML) lifecycle, from building and training models to deploying and managing them in production. Vertex AI’s AutoML feature simplifies model development for users with limited ML expertise, while the model garden offers a collection of pre-trained models ready for deployment. Vertex AI Pipelines orchestrates complex ML workflows, enabling efficient experimentation and automation.
Amazon SageMaker: A fully managed service, SageMaker empowers users to build, train, and deploy ML models at scale. It boasts a wide array of built-in algorithms and frameworks, making it accessible to both beginners and experienced practitioners. SageMaker’s scalability and integration with other AWS services make it a popular choice for enterprise-grade AI solutions.
Amazon Bedrock: This cutting-edge service democratizes access to Foundation Models (FMs) from leading AI start-ups and Amazon itself through a simple API. Bedrock enables developers to harness the power of state-of-the-art generative AI capabilities without having to build and train complex models from scratch.
Microsoft Azure AI: This platform offers a diverse range of AI services, including pre-built AI models for computer vision, speech recognition, natural language processing, and decision-making. Azure Machine Learning allows users to create and deploy custom AI models, while the platform’s extensive integration with other Azure services makes it a versatile choice for a variety of AI applications.
These cloud AI platforms provide a powerful and accessible way for organizations to incorporate AI into their operations, accelerating innovation and driving business value.
Summary
In this chapter, we have explored the fundamental principles of AI system architecture, establishing a comprehensive framework for understanding the building blocks that power intelligent systems. We examined the core components – data as the lifeblood, algorithmic frameworks that enable learning, model architectures that encapsulate intelligence, and infrastructure that provides computational resources – along with architectural patterns such as microservices that offer modularity and flexibility. Critical design considerations of scalability, performance, reliability, and security were discussed as essential elements for robust AI systems that can grow with increasing demands while remaining resilient and protected.
The landscape of AI deployment continues to evolve rapidly, with cloud-native architectures leveraging containerization, orchestration, and serverless computing to achieve unprecedented efficiency. The synergy between data lakes, data warehouses, and data catalogs creates a solid foundation for data-driven intelligence, while major cloud platforms democratize access to sophisticated AI capabilities. As we move forward, these foundational principles will guide the development of AI systems that are not only powerful but also scalable, reliable, and secure – enabling the next generation of innovations across industries.
Relevant reading
Baheti, Radhakisan, and Helen Gill. “Cyber-Physical Systems.” The Impact of Control Technology, edited by Tariq Samad and Anuradha M. Annaswamy, IEEE Control Systems Society, 2011, pp. 161–66.
Bass, Len, Paul Clements, and Rick Kazman. Software Architecture in Practice. 3rd ed., Addison-Wesley, 2012.
Hazelwood, Kim, et al. “Applied Machine Learning at Facebook: A Datacenter Infrastructure Perspective.” 2018 IEEE International Symposium on High Performance Computer Architecture (HPCA), IEEE, 2018, pp. 620–629.
LeCun, Yann, Yoshua Bengio, and Geoffrey Hinton. “Deep Learning.” Nature, vol. 521, no. 7553, 2015, pp. 436–44, doi.org/10.1038/nature14539.
Mao, Hongzi, et al. “Resource Management with Deep Reinforcement Learning.” Proceedings of the 15th ACM Workshop on Hot Topics in Networks (HotNets-XV), ACM, 2016, pp. 50–56, people.csail.mit.edu/alizadeh/papers/deeprm-hotnets16.pdf.
National Institute of Standards and Technology. Artificial Intelligence Risk Management Framework (AI RMF 1.0). NIST, 2023.
Patterson, David, et al. “Carbon Emissions and Large Neural Network Training.” arXiv, 2021, arxiv.org/abs/2104.10350.
Sculley, D., et al. “Hidden Technical Debt in Machine Learning Systems.” Advances in Neural Information Processing Systems, vol. 28, 2015, pp. 2503–2511.
To go deeper on designing robust, scalable AI-enabled systems—from integrating machine learning into existing architectures to managing risks like underperformance, cost overruns, and operational complexity—check out Architecting AI Software Systems by Richard D Avila and Imran Ahmad (Packt, 2025). Through a structured progression of architectural concepts, real-world case studies, and hands-on exercises (including a fictional AI-enabled system you can dissect end to end), it shows software and systems architects, CTOs, VPs of Engineering, AI/ML engineers, and developers how to select the right models and data pipelines, use architectural models to ensure cohesion, simulate and optimize AI performance through iteration, and apply patterns and heuristics to integrate AI into large-scale systems with strong user experience and performance—so you can confidently architect AI-driven products across a range of domains.
Here’s what some readers have said:
 | A guest post by
|
 | A guest post by
|
Really solid breakdown of why trust matters so much in production AI systems. The guard rails framework you mentioned (canaries, data quality checks, human interfaces) actually solves something that doesn't get enough attention in these discussions. Most people focus on getting models to work, but you're right that the maintenance and monitoring side is where things fall apart without good architecture. The conversational AI microservices example was super helpful for seeing how this all comes together in practice.
